Full catalog, 5 pages — browse the index or scroll the page.

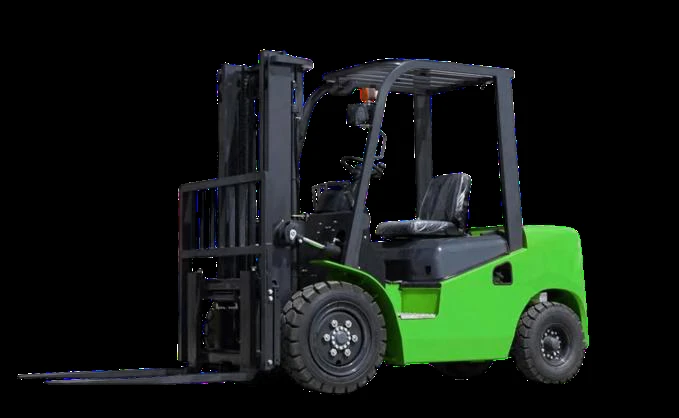

World Prime Services' diesel forklift series for industrial material handling — from compact 1.5-tonne models to heavy-duty 3.5-tonne versions for demanding loads.

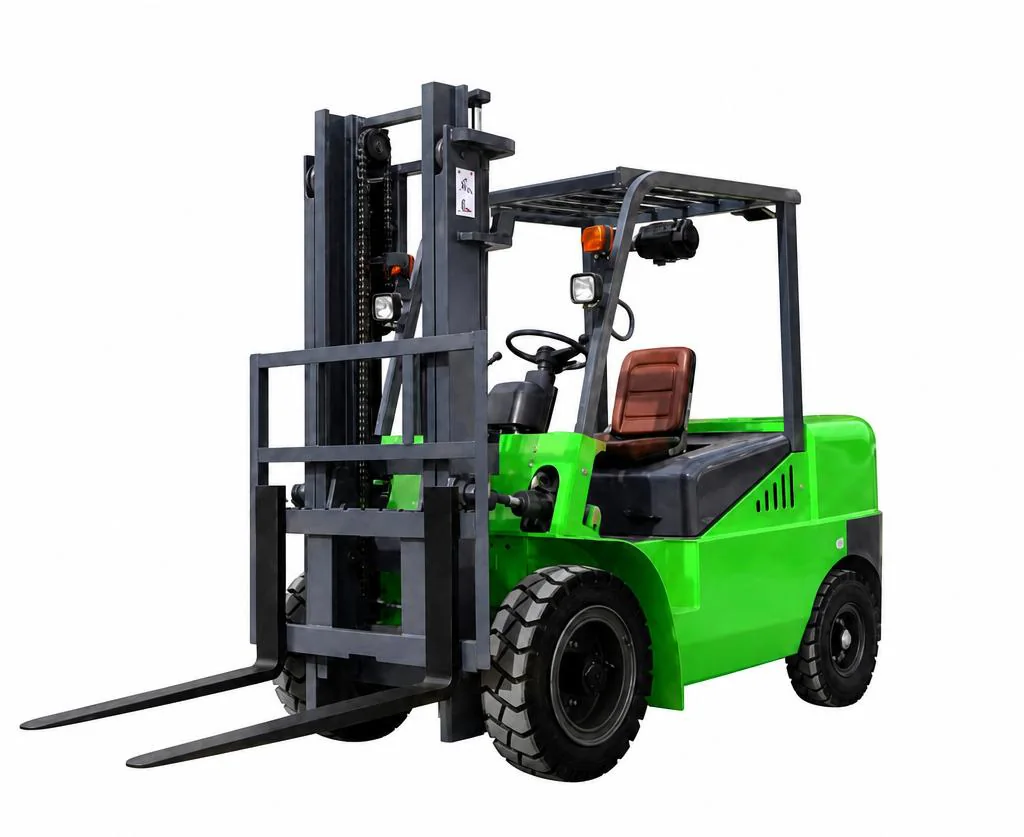

Model CPCD-15 | Internal-combustion counterbalanced forklift
Compact 1.5-ton diesel forklift engineered for efficient loading, unloading and internal transport. The single-cylinder configuration combines durable mechanical construction with straightforward maintenance.
EFFICIENT POWER: Strong diesel output for stable lifting and material movement.
DURABLE CONSTRUCTION: Reinforced mast, overhead guard and solid industrial tyres.
| Parameter | Unit | Specification |
|---|---|---|
| Engine model | — | Quandong Chai 1115 |
| Rated power | HP | 22 |
| Total weight | kg | 2200 |
| Overall dimensions (L x W x H) | mm | 2450 x 1360 x 2200 |
| Wheelbase | mm | 1350 |
| Minimum turning radius | mm | 2200 |
| Rated lifting capacity | kg | 1500 |
| Load centre distance | mm | 500 |
| Standard lifting height | m | 3 |
| Front tyre | — | 650-16 |
Model CPCD-20 | Internal-combustion counterbalanced forklift
A 2.0-ton single-cylinder diesel forklift developed for warehouses, yards and general industrial operations, offering reliable power delivery and a robust counterbalanced chassis.
STABLE HANDLING: Balanced chassis and reinforced mast for dependable operation.
SERVICE-FRIENDLY DESIGN: Simple mechanical systems and accessible engine compartment.
| Parameter | Unit | Specification |
|---|---|---|
| Engine model | — | Quandong Chai 1115 |
| Rated power | HP | 22 |
| Total weight | kg | 2450 |
| Overall dimensions (L x W x H) | mm | 2900 x 1380 x 2200 |
| Wheelbase | mm | 1350 |
| Minimum turning radius | mm | 2400 |
| Rated lifting capacity | kg | 2000 |
| Load centre distance | mm | 500 |
| Standard lifting height | m | 3 |
| Front tyre | — | 650-16 |
Model CPCD-30 | Internal-combustion counterbalanced forklift
Industrial 3.0-ton diesel forklift with multiple engine options, a 3,000 mm standard lift and pneumatic-tyre configuration for demanding indoor and outdoor material handling.
ENGINE FLEXIBILITY: Euro 5, Mitsubishi S4S or Isuzu engine configurations.
INDUSTRIAL MOBILITY: Pneumatic tyres and controlled mast tilt for mixed-surface operation.
| Parameter | Unit | Specification |
|---|---|---|
| Engine model | — | Euro 5 / Mitsubishi S4S / Isuzu |
| Rated load | kg | 3000 |
| Load centre distance | mm | 500 |
| Maximum lifting height | mm | 3000 |
| Wheelbase | mm | 1770 |
| Mast inclination | graus | 6 / 12 |
| Minimum turning radius | mm | 2390 |
| Maximum driving speed | km/h | 18 / 19 |
| Overall size (L x W x H) | mm | 3913 x 1225 x 2160 |

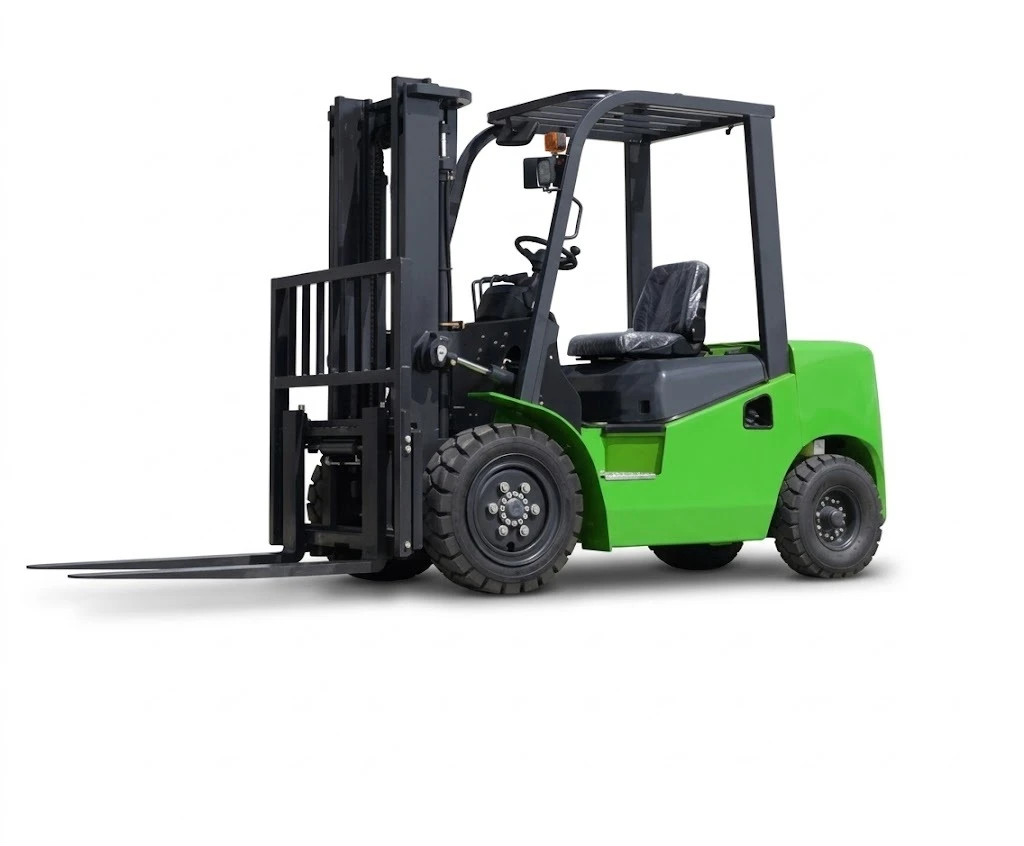

Model CPCD-35 | Internal-combustion counterbalanced forklift
Heavy-duty 3.5-ton diesel forklift built for manufacturing, distribution and construction-material logistics, with a reinforced mast and selectable industrial diesel engines.
HEAVY-LOAD CAPABILITY: 3,500 kg rated capacity with a 500 mm load centre.
OPERATOR CONTROL: Responsive steering, mast tilt and stable counterbalanced geometry.
| Parameter | Unit | Specification |
|---|---|---|
| Engine model | — | Euro 5 / Mitsubishi S4S / Isuzu |
| Rated load | kg | 3500 |
| Load centre distance | mm | 500 |
| Maximum lifting height | mm | 3000 |
| Wheelbase | mm | 1770 |
| Mast inclination | graus | 6 / 12 |
| Minimum turning radius | mm | 2390 |
| Maximum driving speed | km/h | 18 / 19 |
| Overall size (L x W x H) | mm | 3913 x 1225 x 2160 |
